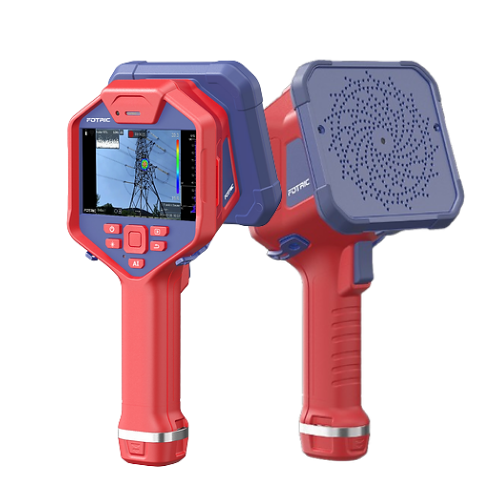

Fotric H7
Powerful Upgrade
Long-range Detection
345 MEMS Digital Michrophone
0.3~300m
Working Distance
NaviPdM Smart Inspection Assistant
On-device Analysis
PD Types & Leakage Evaluation
NaviPdM® Venus Smart Inspection Assistant
FOTRIC H7 Acoustic Imaging Camera combined with NaviPdM® Venus enables a fully digitalized workflow from data acquisition to management, helping enterprises improve operational efficiency and safety.
How does it work?

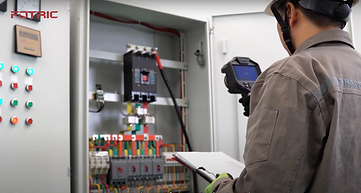

- Equipment maintenance & overhaul: Record equipment status regularly, provide early warnings of potential faults, and reduce downtime.
- Quality control: Capture key acoustic imaging data during production to ensure product consistency.
- Project management: Supply detailed acoustic imaging records to support planning and execution during equipment relocation or new project implementation.

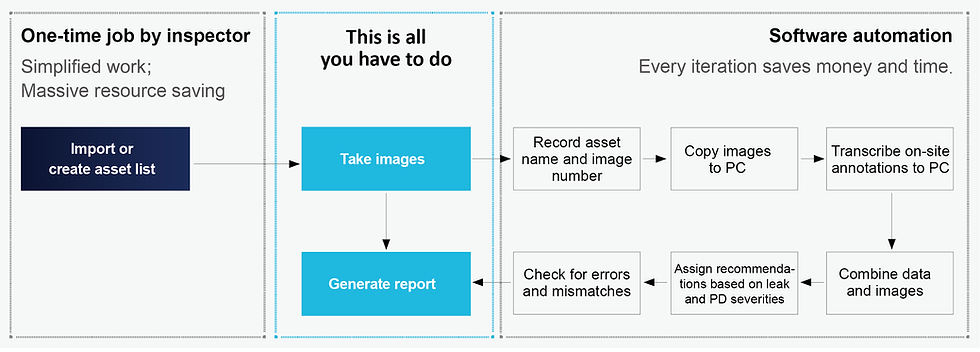

How to Create Assets Quickly?
Traditional Method

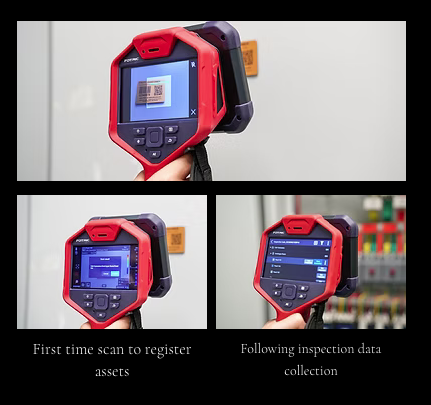

Method 1: Create asset with QR code

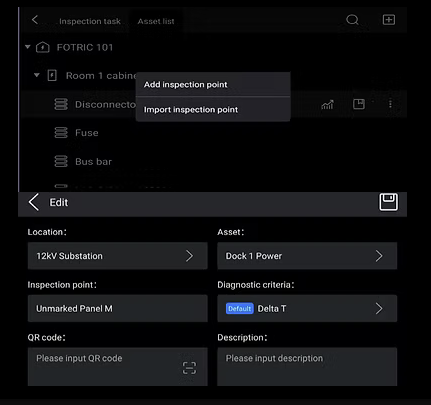

Method 2: Create assets manually
NaviPdM® Asset Creation

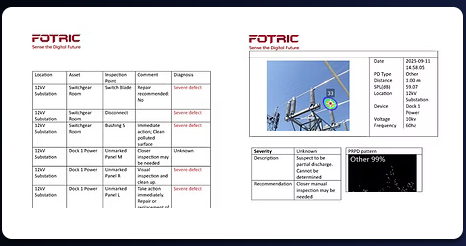

PD Diagnosis Report

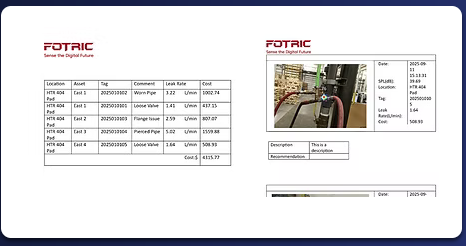

Leak Evaluation Report
Why Fotric H7?

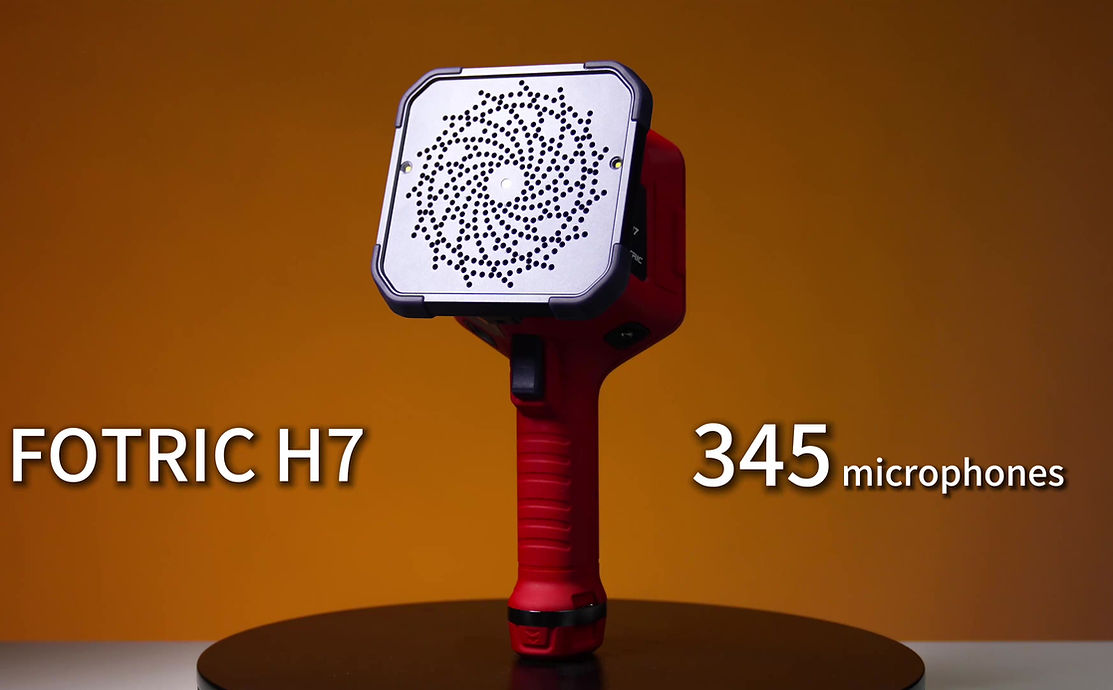

- Spiral topology–optimized array with 345 MEMS digital microphones
- Industrial digital camera: 13 MP resolution
- Removable lithium batteries, with two packs, continuous runtime exceeds 6 hours, meeting full-day inspection needs
- Dual LED light source design for superior illumination
- Ultra-long listening range: operational distance from 0.3m to 300m
Unique Features

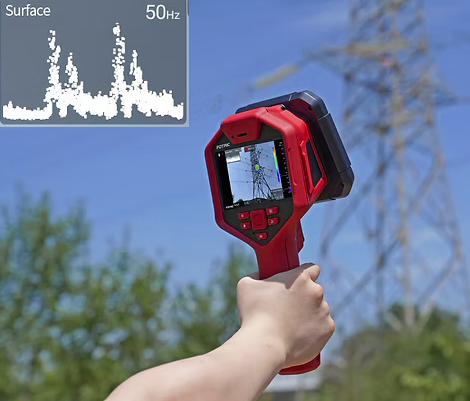

AI PD Defect Diagnosis

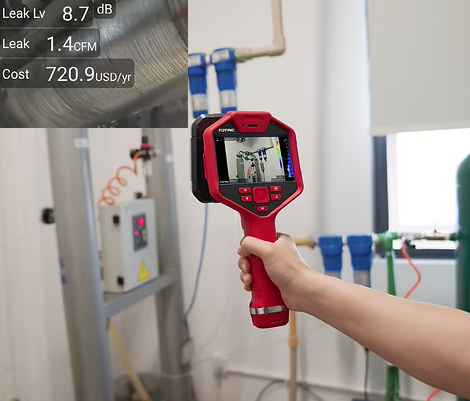

Smart Leak Cost Evaluation
Smart Inspection
Acoustic Image Delay (T-FFTD®)
Utilizes a multi-modal transient acoustic matrix to enhance microsecond-level acoustic event retention.
Boost signal retention and enhance inspection efficiency for intermittent sound sources.

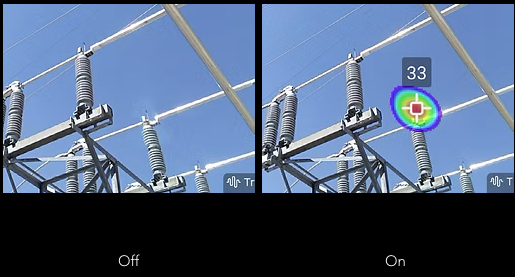

Acoustic Image Focus
Combines adaptive dynamic noise reduction algorithms to achieve focused localization of sound sources.

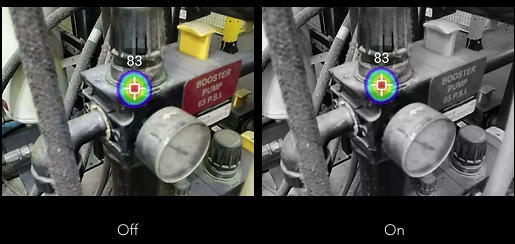

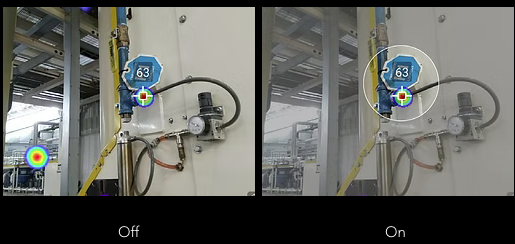

Gray Scale Background
Under an industrial-grade gray-scale background, sound signals displays are more prominent.
NaviPdM® Venus
Innovative Acoustic Data Management System, enables full-process digitalization from data acquisition to management.

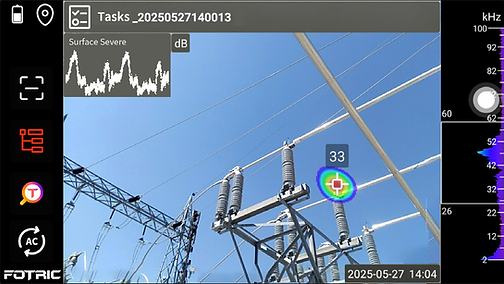

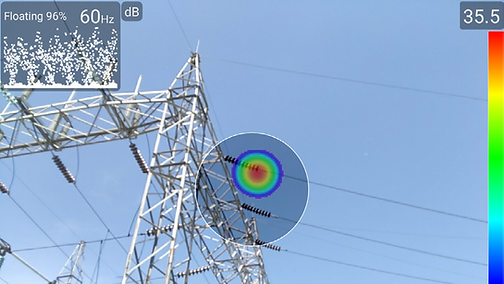

Partial Discharge · Automated Diagnosis

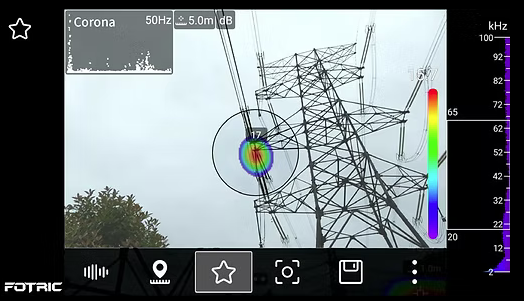

AI identifies surface discharge, floating discharge, corona discharge, and evaluates severity levels.

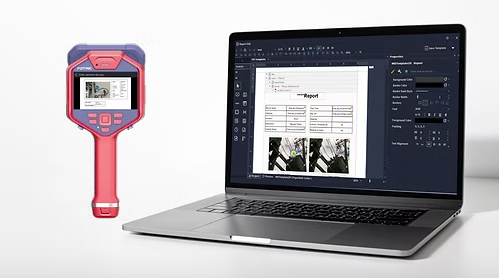

Fast Reporting · On-Device Generation
Directly generates Word or PDF reports on the device, with preview avaiable in the gallery.
Favorite Function
Highlight, locate images quickly, and manage with ease.

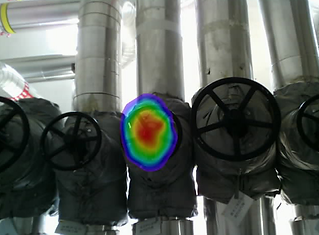

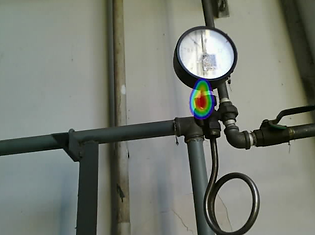

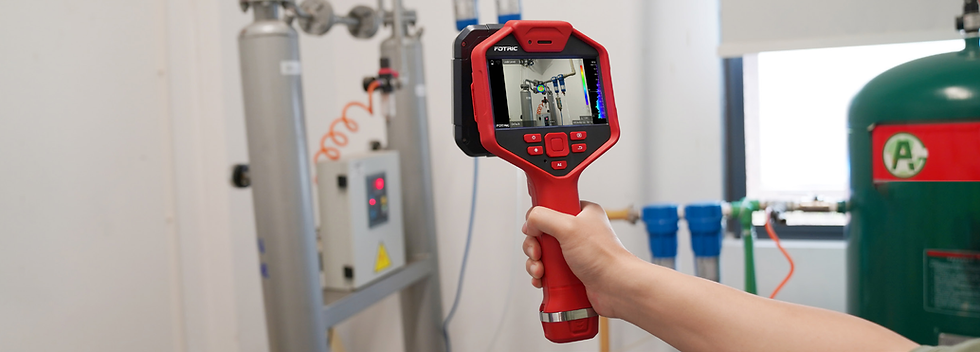

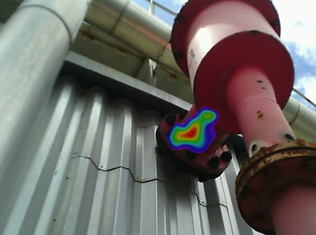

Gas Leak Applications

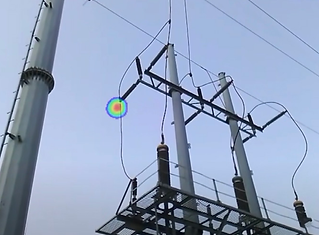

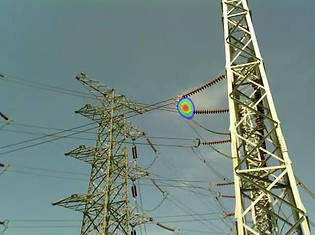

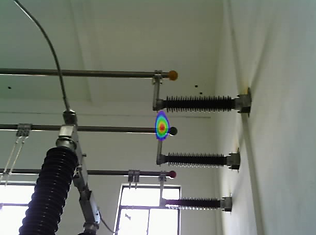

Partial Discharge Applications
